| PARAMETERS | SPECIFICATION |
|---|---|
| Frequency Range | 32.768KHz |
| Loading Capacitance | 12.5pF Std. 9 pF available |
| Drive Level | 0.1μW (1.0μW Max) |
| Frequency Tolerance | ±20ppm(at 25ºC) |
| Equivalent Resistance | 90KΩ Max |
| Turn-over temperature | +25ºC±5ºC |
| Temperature coefficient | -0.04×10-6 /ºC2 max |
| Operating Temp. Range: | -40~+85ºC |
| Storage Temp. Range: | -40~+85ºC |
| Aging(25ºC,First Year) | ±3ppm max |
Our products are widely used in IoT, mobile phones, Bluetooth, GPS, Wi-Fi, automotive electronics, smart home, instrumentation, base stations, radar, microwave communications, and other advanced technological fields.

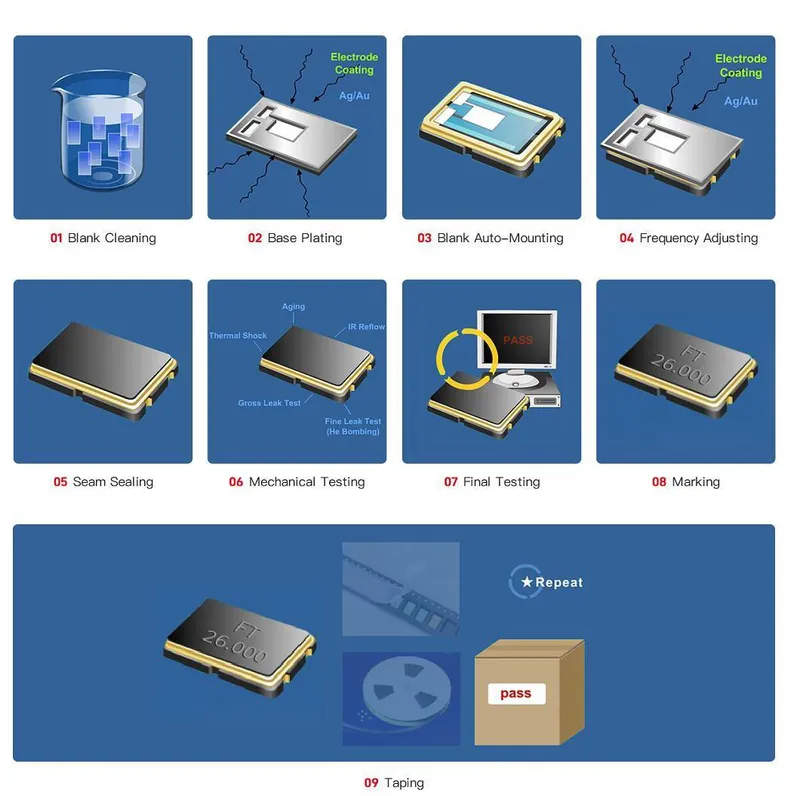

Quartz Crystal Resonator and Oscillator production includes dozens of processes, such as blank washing and cleaning, electrode evaporation with silver or gold in a vacuum chamber (sputtering), blank positioning and contacting, final frequency adjustment at a specified load capacitance, package sealing under a nitrogen atmosphere, marking, 100% final test, and packaging. Below is the production flow chart of our crystals and oscillators.
Our factories strictly implement ISO9001, ISO14001, and IATF16949 standards. All frequency control products fully comply with global environmental regulations, including RoHS and REACH.

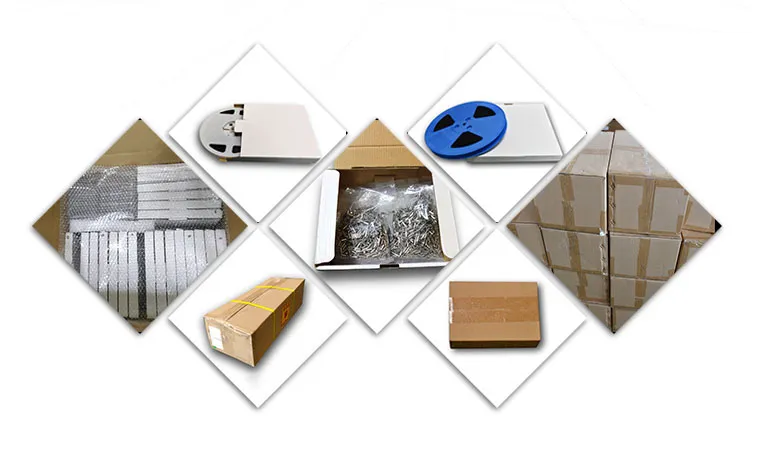

Products are packaged in secure, standardized methods such as Tape & Reel or Bulk packaging to prevent any damage during transport.
We utilize reliable international carriers like DHL, FedEx, UPS, and TNT for timely deliveries. Specific shipping arrangements can also be customized according to your logistic preferences.
| Product Name | Lead Time | Product Name | Lead Time |
|---|---|---|---|
| Crystal Resonator HC49U | 4W-5W | Crystal Resonator SMD6035 | 6W-8W |
| Crystal Resonator HC49S | 4W | Crystal Resonator SMD6035 Seam 2pad | 6W-8W |
| Crystal Resonator HC49SMD | 4W | Crystal Resonator SMD7015 | 4W-6W |
| Crystal Resonator DT26 | 4W | Crystal Resonator SMD1610 | 4W-6W |
| Crystal Resonator DT38 | 4W | Crystal Resonator SMD2012 | 4W-6W |
| Crystal Resonator AT26 | 4W-6W | Crystal Resonator SMD3215 | 3W-4W |
| Crystal Resonator AT38 | 4W-6W | Crystal Resonator SMD7*1.4mm | 4W-6W |
| Crystal Resonator SMD1612 | 4W-6W | Crystal Resonator SMD8*3.8mm | 4W-6W |
| Crystal Resonator SMD2016 | 4W-6W | Crystal Oscillator SMD1612 | 4W-6W |
| Crystal Resonator SMD2025 | 4W-6W | Crystal Oscillator SMD2016 | 4W-6W |
| Crystal Resonator SMD3225 | 3W-4W | Crystal Oscillator SMD2520 | 3W-4W |
| Crystal Resonator SMD5032 | 4W | Crystal Oscillator SMD3225 | 3W-4W |
| Crystal Resonator SMD5032 Glass 2PAD | 5W-6W | Crystal Oscillator SMD5032 | 3W-4W |
| Crystal Resonator SMD5032 Seam 2PAD | 4W-6W | Crystal Oscillator SMD7050 | 3W-4W |
