| Laser Model | SW-FLM20 | SW-FLM30 | SW-FLM50 | SW-FLM100 |
|---|---|---|---|---|
| Laser Power | 20W | 30W | 50W | 100W |
| Laser Wavelength | 1070nm | |||
| Beam Quality | M2 < 1.3 | M2 < 1.3 | M2 < 1.5 | M2 < 2.0 |
| Laser Repetition Frequency | 20kHz ≤ F ≤ 100kHz | |||
| Line Speed | 7000mm/s | |||
| Min Character Size | <0.5mm | |||
| Marking Size | 100x100mm (50x50mm - 300x300mm options) | |||
| Peak Power | ≤0.5KW | ≤0.5KW | ≤0.8KW | ≤1KW |
| Power Supply | AC220V/50Hz | |||
| Control System | computer | |||
| Cooling System | air cooling | |||

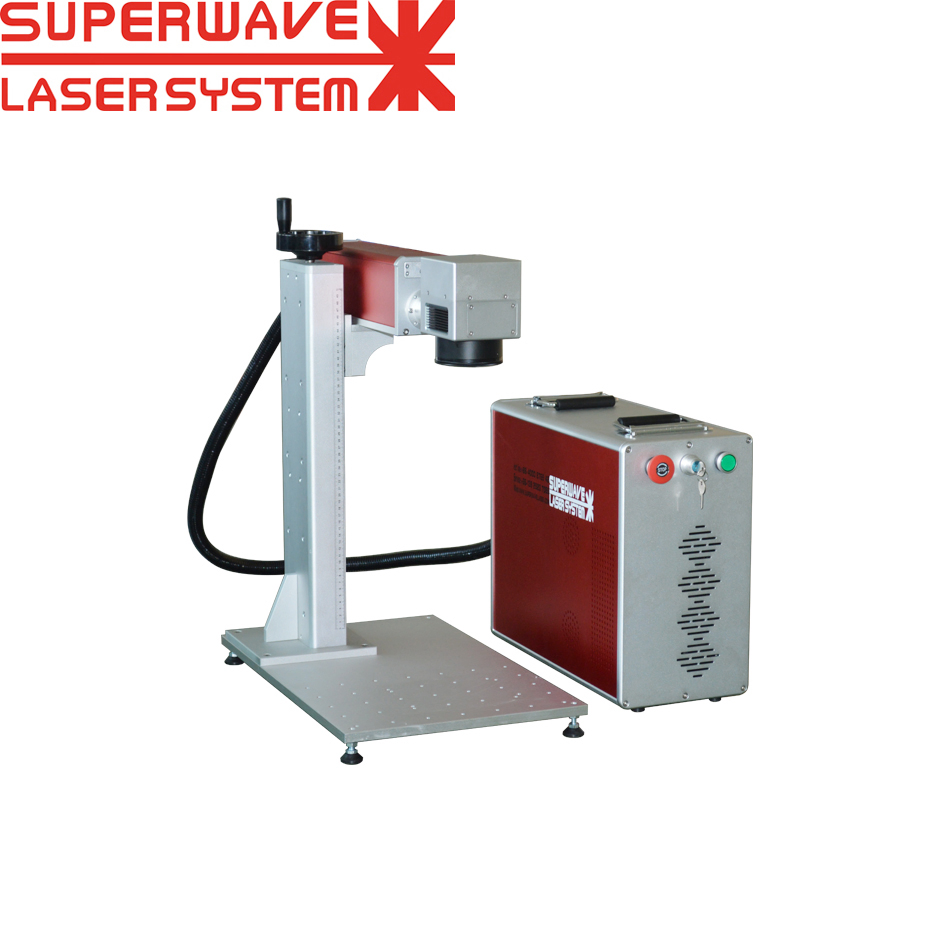

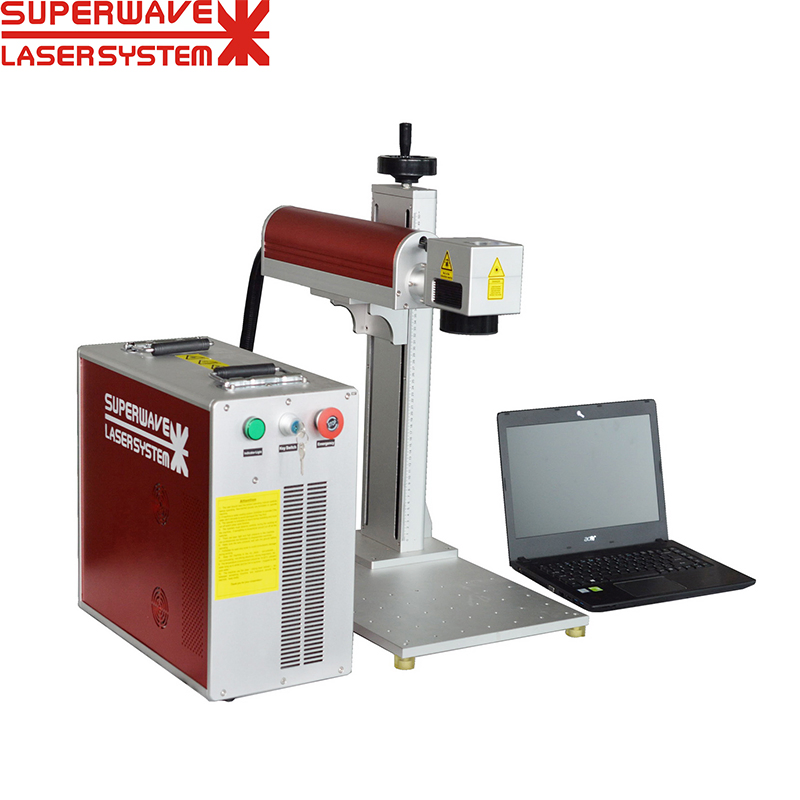

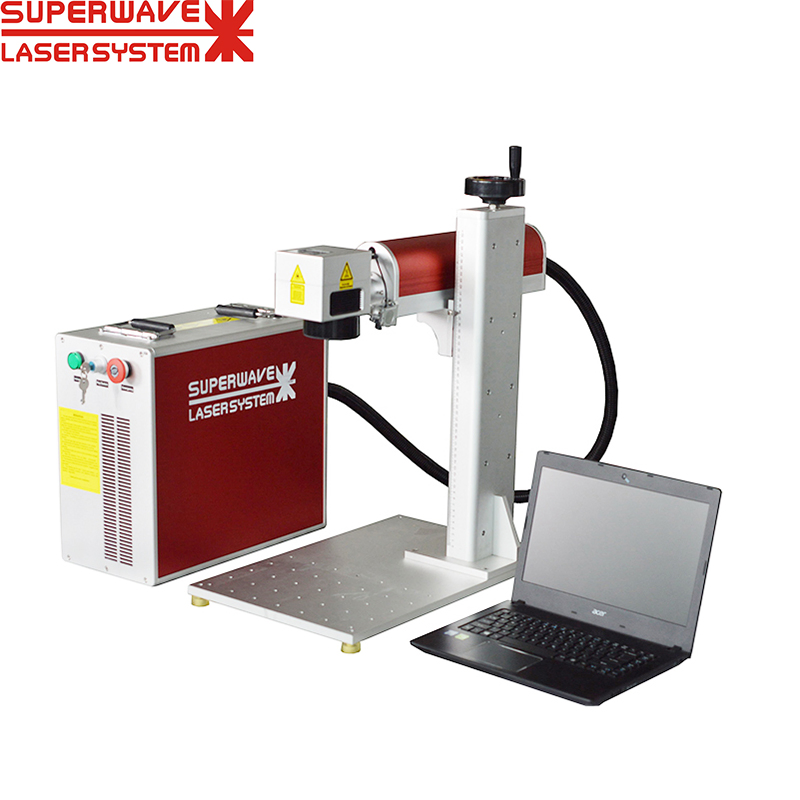

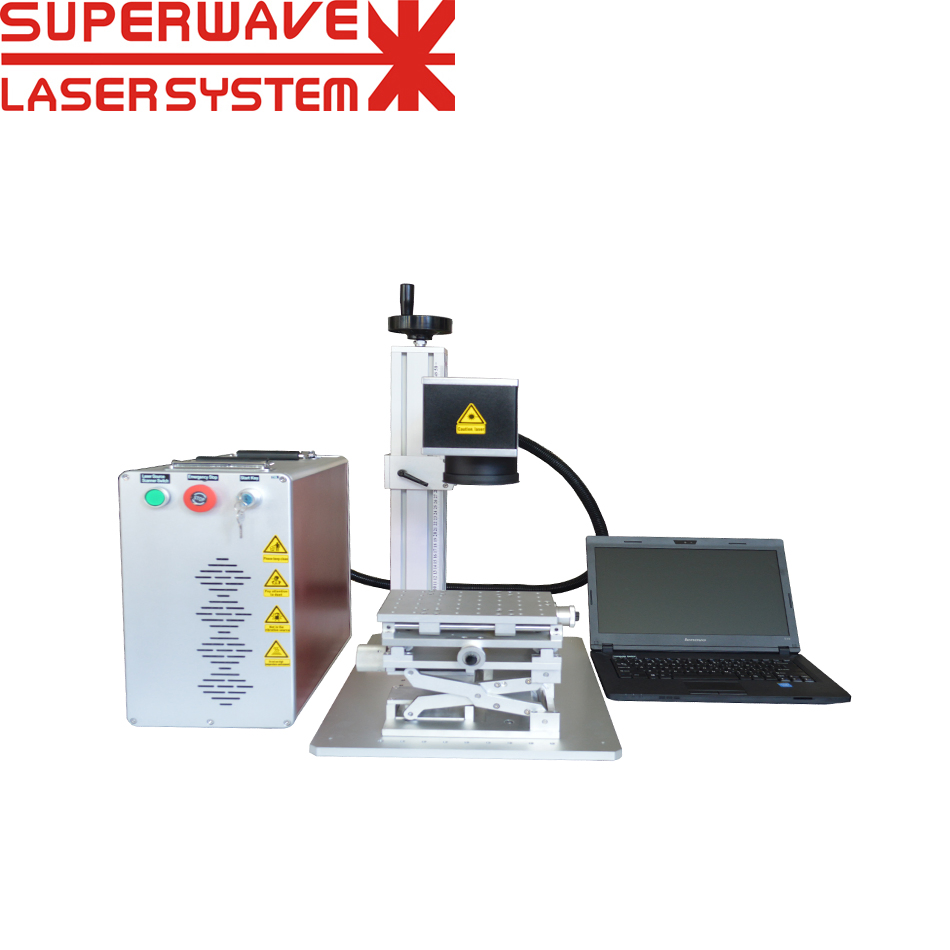

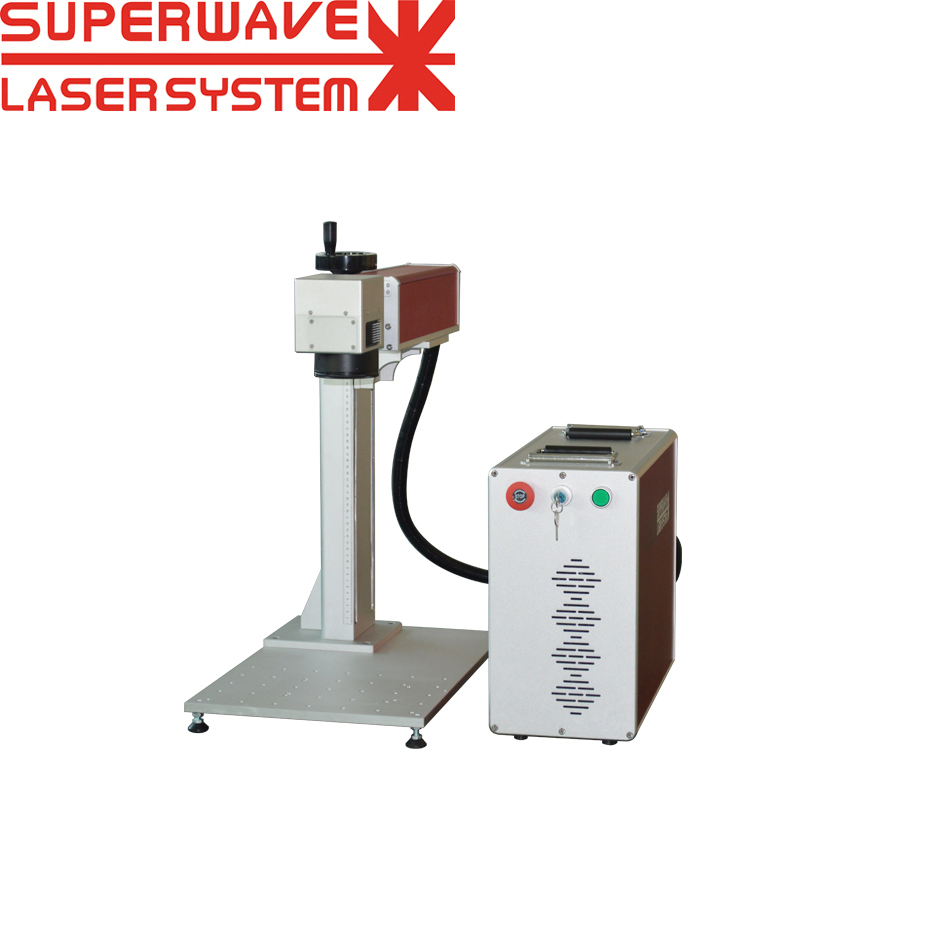

The optical fiber laser markers feature high efficiency in electrical/optical conversion, and wind cooling is employed. The whole system is small in size, with high beam output quality, high reliability, super long service life, and saving energy. The markers are used for fields with higher requirements in depth, smoothness and precision, and they are used to engrave metallic and non-metallic materials, for example, stainless steel decorating parts for handsets, clocks, watches, moulds, ICs, handset buttons, etc. The markers are able to engrave beautiful images on metallic and plastic surfaces.
Small size design requiring significantly less power consumption.
Equipped with a professional high-speed scanner head for rapid processing.
Highly stable property ensures consistent marking quality.
Super long operational lifetime with a life expectancy of 100,000 hours.
Reliable solid-state design that requires virtually zero maintenance.
Easily align materials with a real-time preview of the marking position.

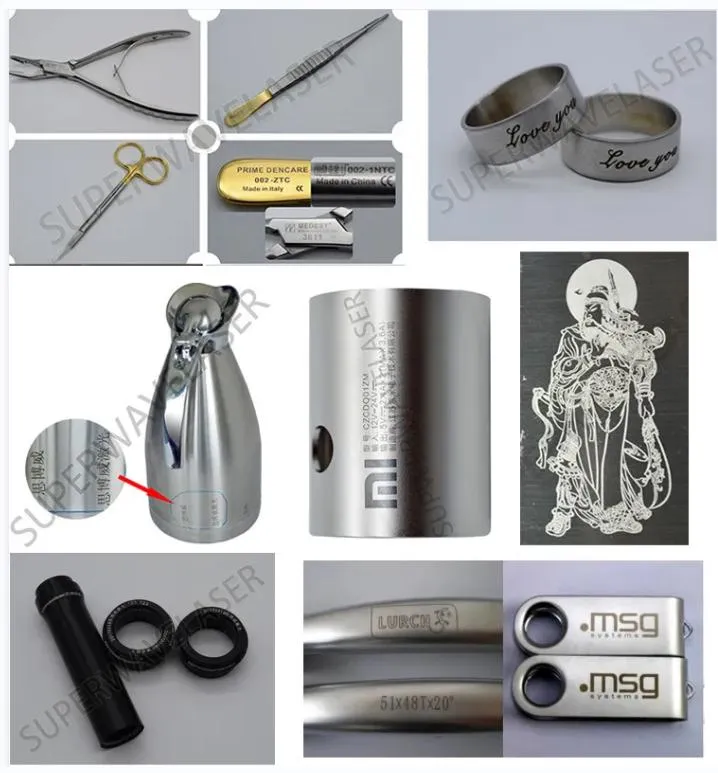

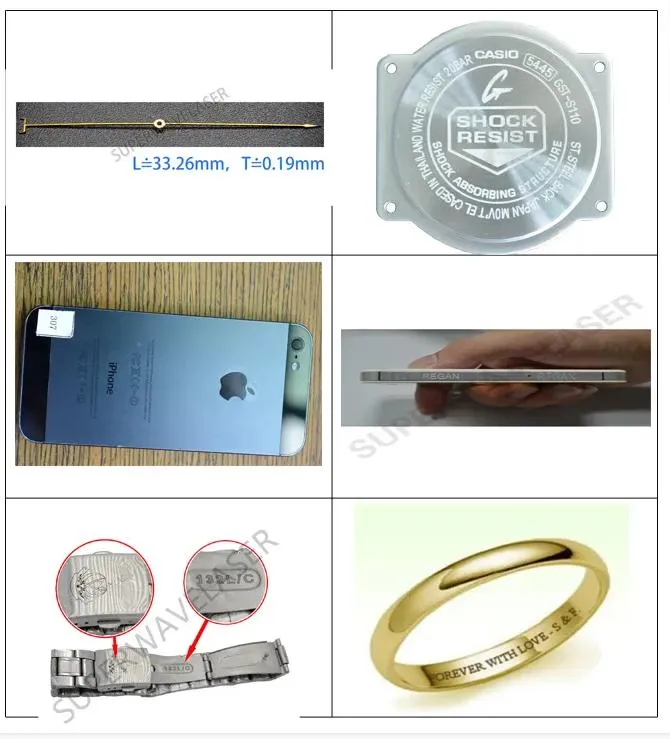

This fiber laser marking system is designed to engrave both metallic and non-metallic materials, including stainless steel decorating parts, handset components, clocks, watches, moulds, ICs, buttons, and various plastics.
The optical fiber laser source offers high reliability and durability, with a super long life expectancy of up to 100,000 hours.
No, this system utilizes an integrated wind/air cooling design, which makes it highly efficient, compact, and completely free from external water cooling maintenance.
The SW-FLM series is available in four power output levels to suit different depth and marking speed requirements: 20W, 30W, 50W, and 100W.
The red light preview projects a visible outline of the marking path onto the workpiece surface, allowing the operator to check and adjust the alignment before starting the laser process.
The standard marking size is 100x100mm. Optional configurations are available with marking fields ranging from 50x50mm up to 300x300mm depending on your requirements.
