Basic Info.
Model NO.
SR-P mini
Laser Visibility
Invisible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Laser Wavelength
Fiber Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Processing Area
70*70mm, 100*100mm
Fiber Power
20W 30W
Laser Source Life Span
100,000 Hours
Positioning Accuracy
0.01mm
Marking Speed
7000mm/s
Min. Line Width
0.02mm
Gross Power
500-800W
Working Voltage
220V/1pH/50/60Hz
Packaging & Delivery
Package Size
54.00cm * 28.00cm * 32.00cm
Package Gross Weight
15.000kg
Transport Package
Plywood Case
Product Description & Overview

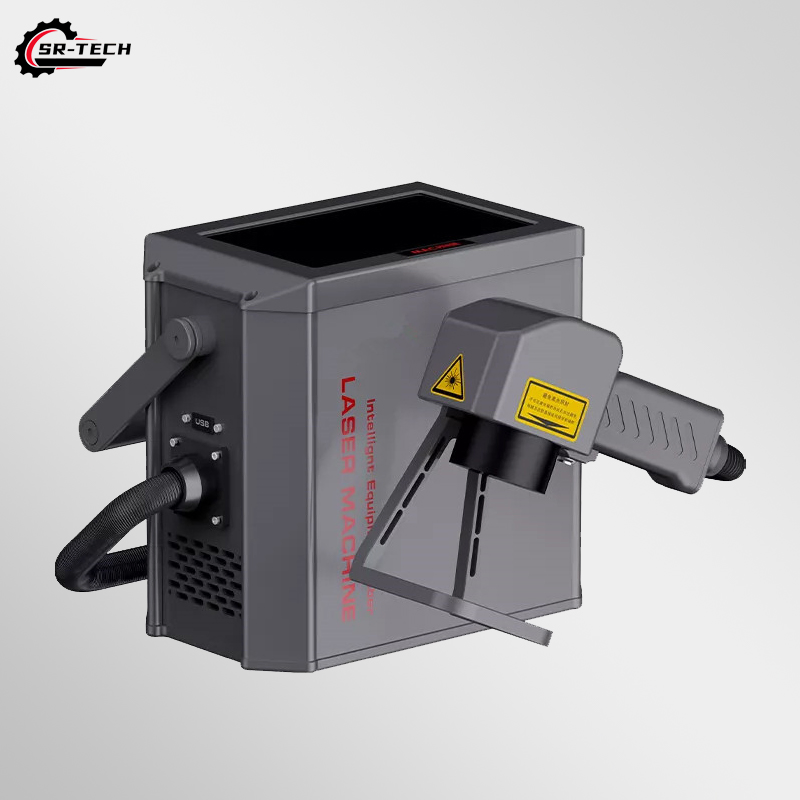

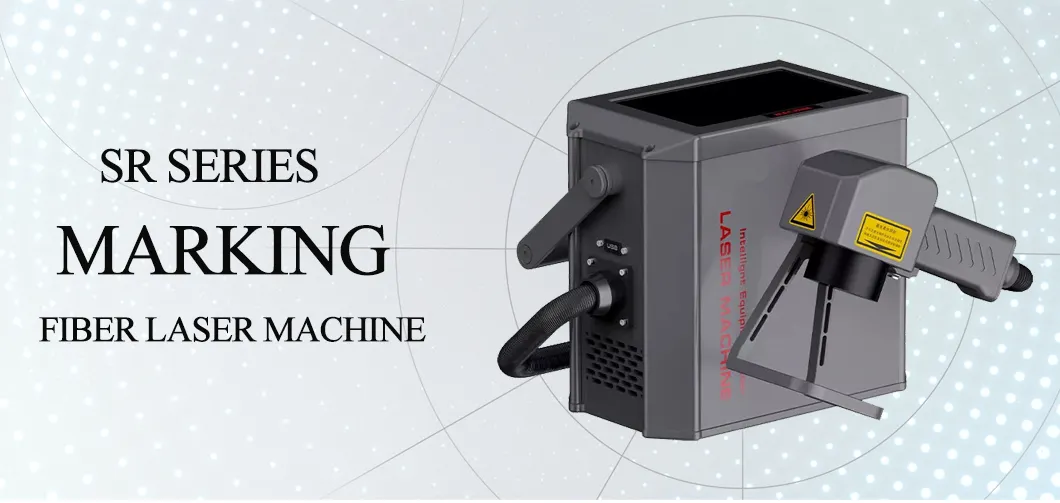

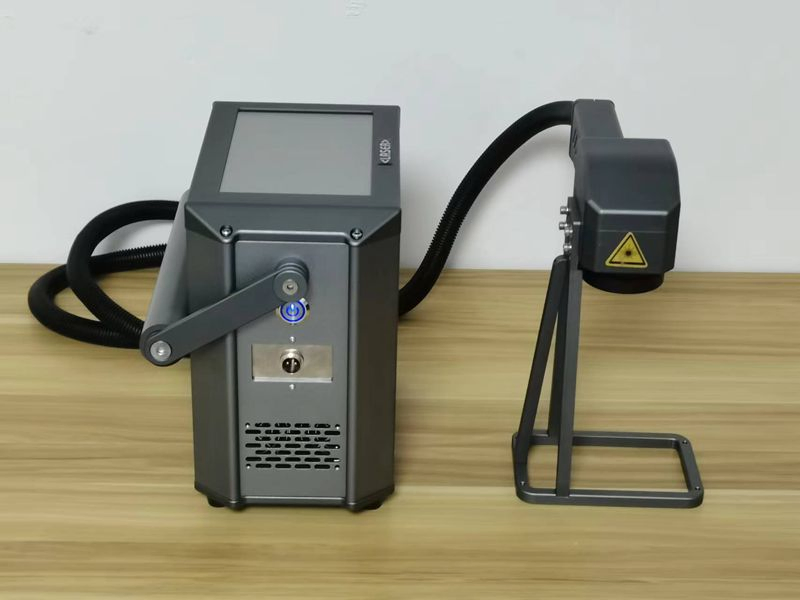

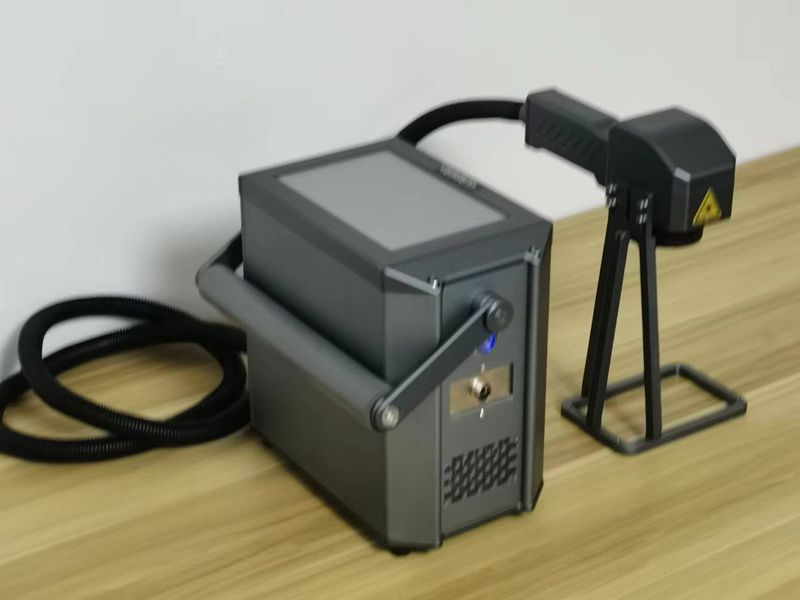

20w 30w Affordable Portable Fiber Laser Marking Machine Cabinet Integrated Fiber Laser Marking Machine Mopa Jpt Laser Marker
Machine Advantages
- Excellent light quality: Compared with traditional solid laser marking machines, the angle of divergence is only 1/4 of a diode pump laser device, making it especially suitable for precision marking.
- Low usage cost: Photoelectric conversion efficiency max is 30%, and the whole machine power consumption is less than 500w, which greatly saves electricity costs. No consumable ink cost burden, eliminating nozzle cleaning issues.
- Free maintenance & long service life: Using a laser diode as the pump source with a fully sealed light path design. No-failure operation can reach up to 100,000 hours.
- Fast process speed: Processing speed is 5-10 times faster than traditional laser marking machines.
Technical Parameters
| Parameter |
Specification Details |
| Model |
SR-P Mini |
| Processing area |
110mm*110mm |
| Fiber power |
20W |
| Cooling mode |
Air cooling |
| Laser Wavelength |
1064nm |
| Resetting positioning accuracy |
±0.003mm |
| Marking speed |
≤7000mm/s |
| Compatible Software |
CorelDraw/AutoCAD/Photoshop/AI ... |
| Position Type |
Red Dot Pointer |
| Support graphic format |
DXF, PLT, AI, BMP, JPG, etc. |
| Working Voltage |
220V/1ph/50/60HZ |
Machine Applications

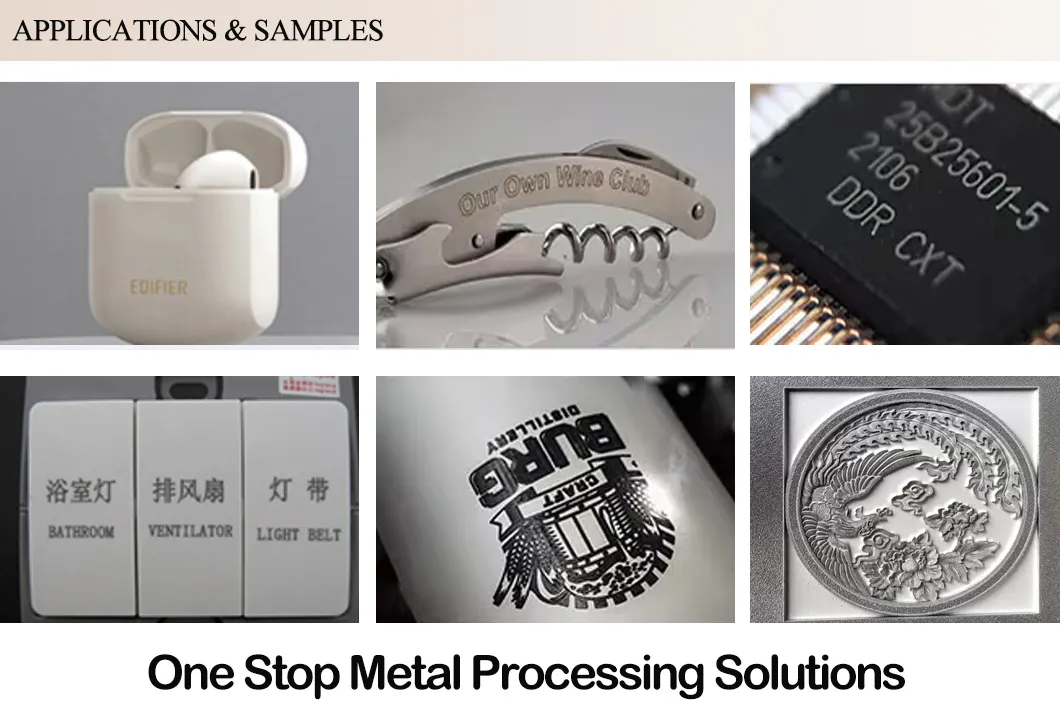

Application Industries: Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

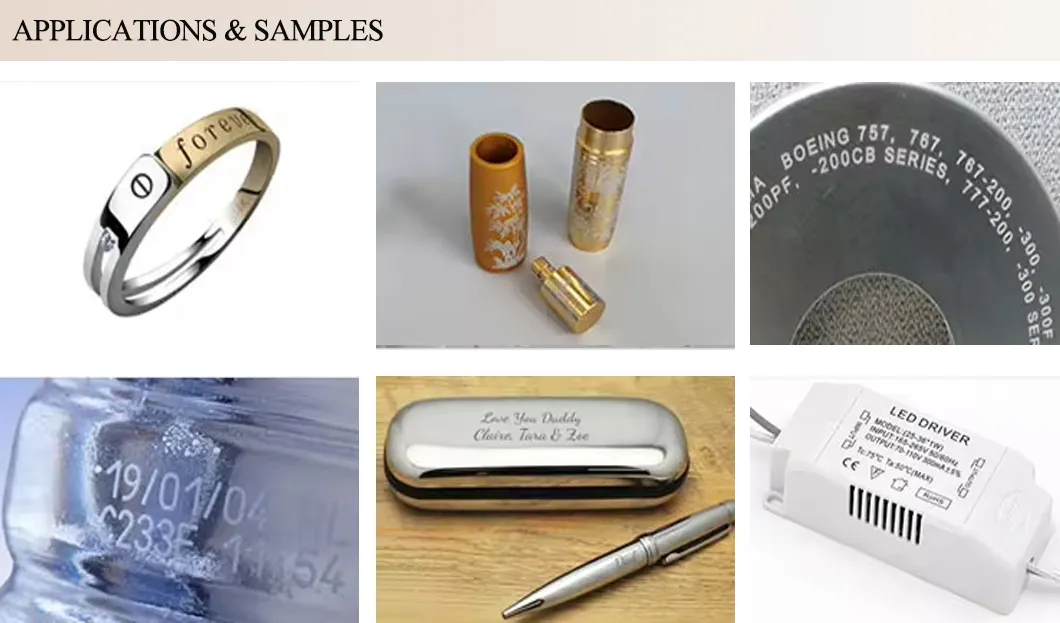

Application Materials: Engraving bar codes, decorative map, LOGO, factory number, production date, dial on all Metals (Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card), Non-metals (Plastic: engineering plastic and hard plastic, etc.). Used in electronic components integrated circuits, mobile communications, precision instruments, glasses, watches and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.

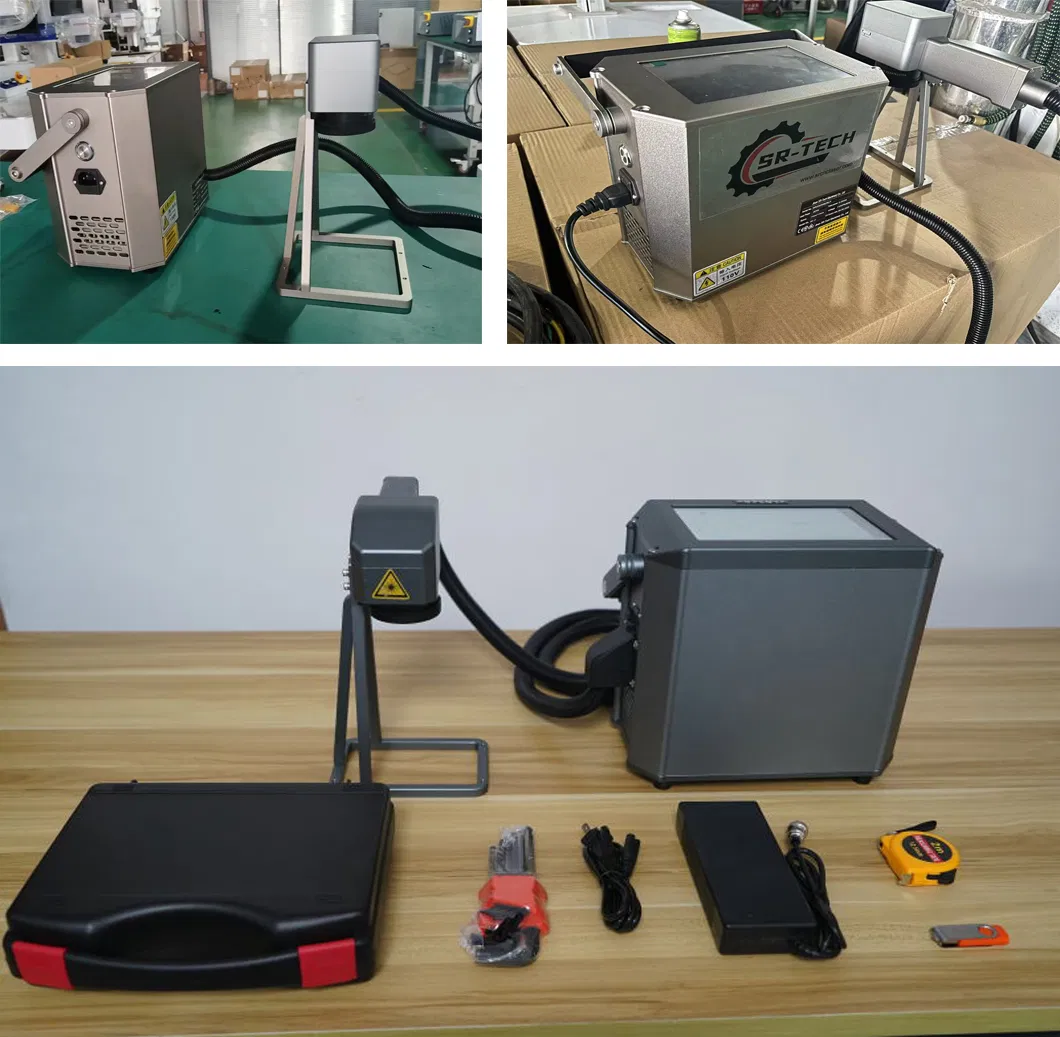

Package & Shipping
- Package: Plywood case
- Delivery time: 3-5 working days
After Sales Service
Pre-sales Service
- Timely response regarding products, prices, technology, and industry solutions.
- Free sample testing service is provided.
Service in Sales
- Production status updates provided via video or photos every 7 days.
- Comprehensive quality testing for over 72 hours before packaging to ensure optimal condition.
After-sales Support
- Free user manual and operation videos sent upon machine dispatch.
- 7*18h fast response from our dedicated engineer team.
- 2-year warranty for the whole machine with reasonable price parts replacement.
Frequently Asked Questions (FAQ)
What is the lifespan of the laser source in this machine?
The laser source utilizes a high-quality laser diode pump source and has a lifespan of up to 100,000 hours, requiring virtually zero maintenance during operation.
What kind of materials can this fiber laser marker engrave?
It is highly effective for engraving all metals (such as gold, silver, copper, steel, aluminum, and stainless steel) as well as various non-metal materials like hard plastics, engineering plastics, and PVC.
What software is compatible with the SR-P Mini?
The machine is fully compatible with popular industry software programs including CorelDraw, AutoCAD, Photoshop, and Adobe Illustrator (AI), supporting file formats like DXF, PLT, AI, BMP, and JPG.
How does the cooling system work, and does it require additional cooling fluid?
The machine uses a built-in Air Cooling system. It does not require water, external chillers, or cooling fluids, making it very clean and easy to maintain.
What is the warranty and technical support policy?
We offer a 2-year warranty for the entire machine. For technical assistance, our support team provides a fast 7*18h response time along with free user manuals and operational videos.
